JP7000 Horizontal Wood Crusher: 40t/h High-Capacity Engineering for Global Forestry
When it comes to industrial wood processing in regions like Russia, Southeast Asia, and Africa, it is clear that reliability and throughput are the only metrics that truly matter. However, while many manufacturers focus primarily on exterior aesthetics, the Jinpeng JP7000 Horizontal Crusher is specifically engineered for the heavy-duty reality of the field. Consequently, it provides the essential benefits that professionals demand, such as high productivity, long blade life, and zero downtime.

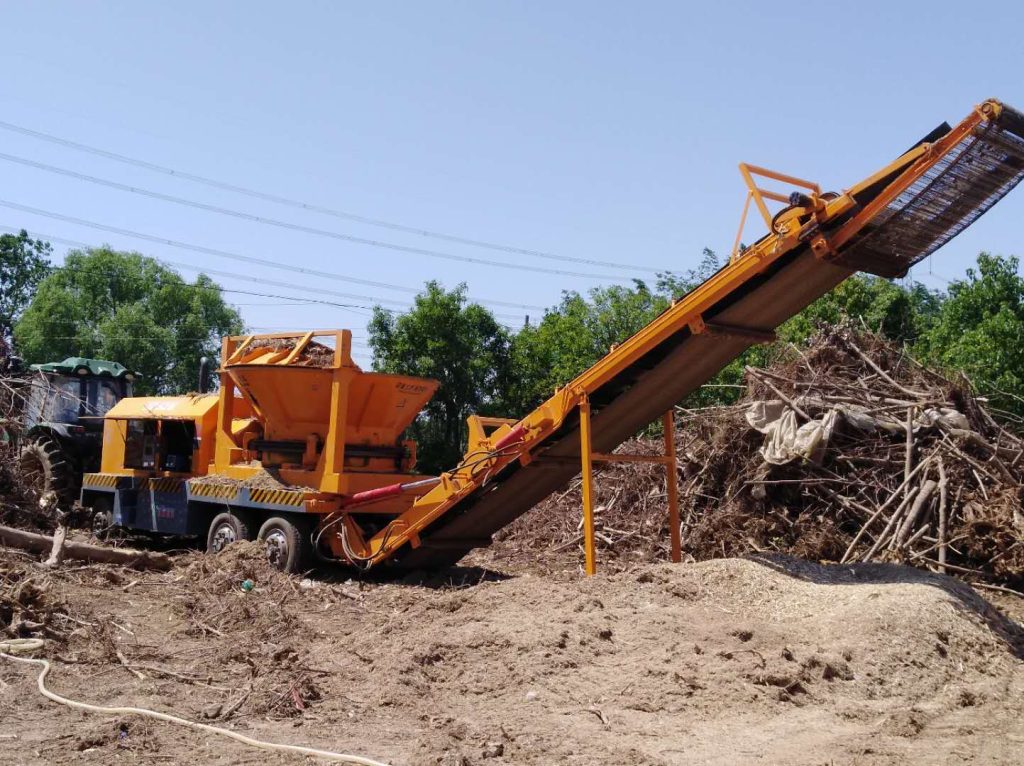

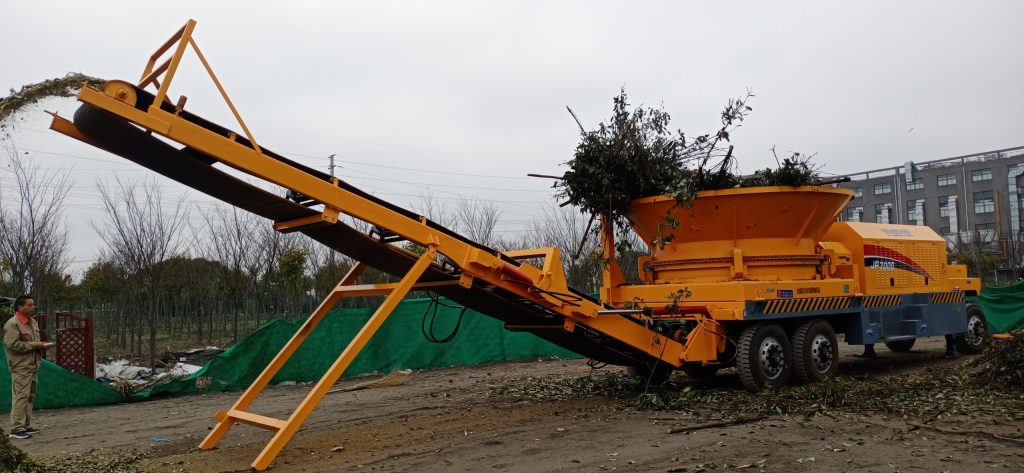

Massive Output: 40 Tons Per Hour
Firstly, let’s begin with the capacity of this big horizontal crusher machine. Indeed, the JP7000 is not just a machine; rather, it is a high-volume production line on wheels. Moreover, with its ability to process 20 to 40 tons per hour, it is specifically designed to meet the demands of large-scale biomass plants and timber processing facilities.”
| JP7000 | Functions | |
| Engine | Weichai Brand Diesel Engine 530HP | it maintains a constant shaft speed of 960 rpm, ensuring that even the most massive logs are crushed with ease. |
| Inlet Size | 3600mm | |
| Max Processing Diameter | 2400mm | this horizontal crusher handles oversized wood waste that would stall smaller machines. |
Efficiency by the Numbers: Low Fuel, High Speed
Secondly, we would talk about the Fuel consumption of this huge working partner, which is also a critical factor for operational profitability in remote locations. The JP7000 optimizes fuel use at 20-40 L/h, never exceeding 45 L/h even at peak load. While it depends on the raw material and climate as well.
Conveyor

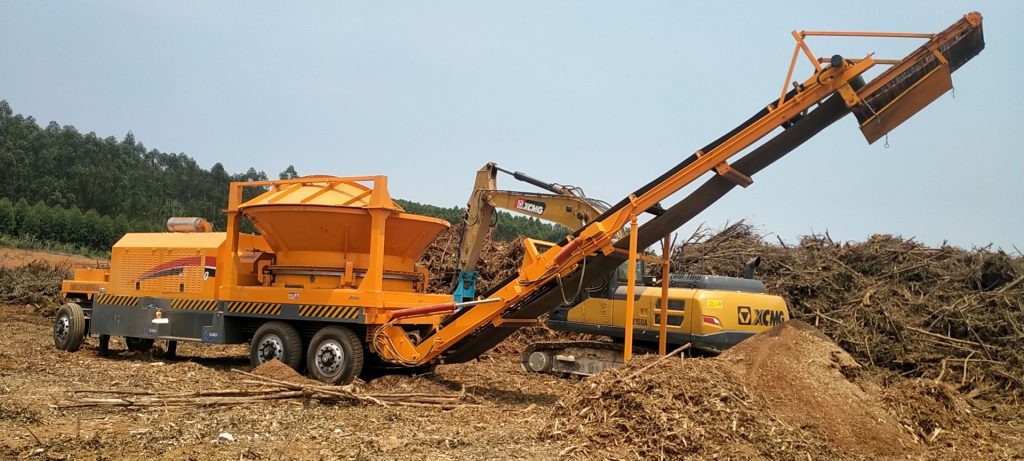

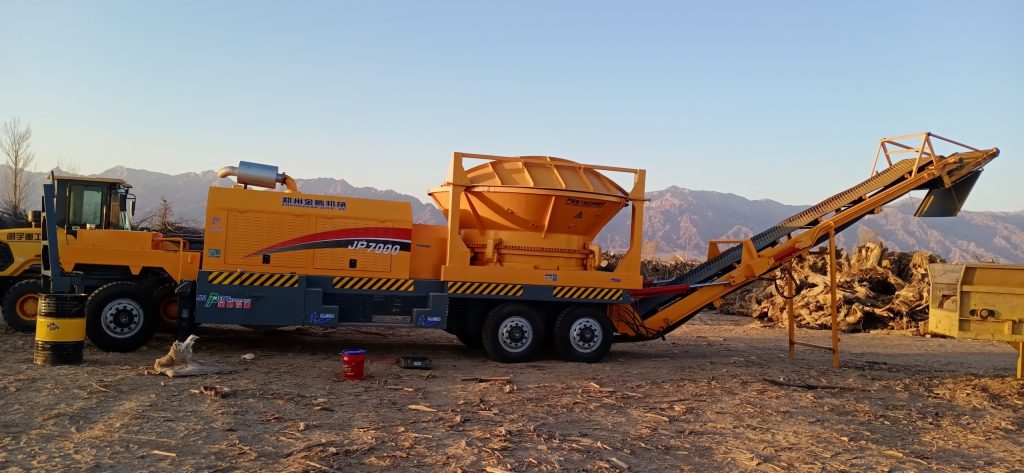

Thirdly, In terms of performance, the combination of a 175 m/min conveyor speed and a wide conveyor belt (1000 mm x 23000 mm) in this way, it ensures that processed material is moved efficiently. Consequently, this allows the output to reach a discharge height of 4200 mm, thereby enabling direct loading into high-capacity trucks without the need for additional handling.”
Anti-Clogging & Long Blade Life
Above all, the JP7000 as ‘Industrial Horizontal Wood Crusher’ engineered specifically to stay running. For this reason, its unique internal geometry and cutting roller (2230 mm x 700 mm) have been emphatically optimized to prevent the common issue of clogging. Finally, the machine maintains peak performance even no matter handling wet or fibrous materials found in diverse environments, such as tropical or sub-arctic climates as well as wet lands.
Although these advantages already make this machine stand out, they are not enough.
Our customers consistently report they are very statisfied with the extended blade life, which reducing the frequency of maintenance stops. Especially, in the harsh environments of Africa or the Russian Far East, this durability is the ultimate competitive advantage.
JP7000 Technical Specifications/Configuation
Having described the features above, I’m sure you’re eager to place an order.
But hold on, here are two models wheel tire mobile & crawler, for you to choose from.
| Model | JP7000 wheel tire mobile | JP7000 crawler |
| Processing Material: | log, branch, plastic, tree, garden waste | log, branch, plastic, tree, garden waste |
| Dimension | 9600*2550*3600mm | 8000*2550*3200 |
| Capacity | 25-35t/h | 25-35t/h |
| Max Processing Diameter | 2400mm | 2400mm |
| Main Shaft Speed | 900r/m | 900r/m |
| Diesel Power | 550HP | 550HP |
| Gearbox | China Fast | China Fast |
| Conveying Method | Hydraulic Drive | Hydraulic Drive |
| Cutter Roller Size | 2400*700 | 2400*700 |
| Qty of Cutter | 24 pcs | 24 pcs |
| Blade Size | 200*185*20mm | 200*185*20mm |
| Cutter Screw | 2pc/blade | 2pcs/blade |
| Qty of Bottom Cutter | 2 pcs | 2pcs |
| Bottom Cutter Size | 900*110*30mm | 1200*110*30mm |
| Bottom Cutter Screw | 10pcs | 10pcs |
| Inlet Size | 3600mm | 3600mm |
| Cutting Chamber Size | 2400mm | 2400mm |
| Tire Model | 1000-20 | Crawler: 4200*450*720mm |
| Discharge Height | 4.5m | 4.5m |
| Discharge Belt Size | 1000*23000mm | 1200*23000mm |
Regarding the rugged design for practical success, we understand that for our clients in Southeast Asia and Africa, performance always comes before polished exteriors. In fact, the JP7000’s 16.8-ton frame is built specifically to withstand the extreme rigors of industrial use. Therefore, it stands as a practical, powerful, and profitable choice for anyone looking to scale their wood crushing operations effectively.
Thus, If you are looking for an Industrial Wood Crusher that balances power and ROI, the JP7000 is your best choice.
Wheeled vs. Tracked Mobile Wood Crushers Comparison: The Ultimate Selection Guide
Last, let’s compare the wheel mobile and crawler mobile wood crusher. then you would know how to find the most suitable type.
Undoubtedly, in the world of heavy-duty wood recycling and forestry clearing, choosing the right mobility platform for your crusher is a critical decision. Moreover, it is a choice that significantly impacts your ROI, operational efficiency, and eventually, your long-term maintenance costs.
Exclusively, at Jinpeng Equipment, our JP Series (including the JP5000 and JP7000) offers two primary mobile configurations, namely Wheeled (Trailer-Mounted) and Tracked (Crawler). Hence, to help you navigate these options, here is everything you need to know to make the right choice for your project.
1. Wheeled Mobile Crushers: The Speed Specialist
Best for: Urban forestry, municipal waste, and multiple-site contracts.

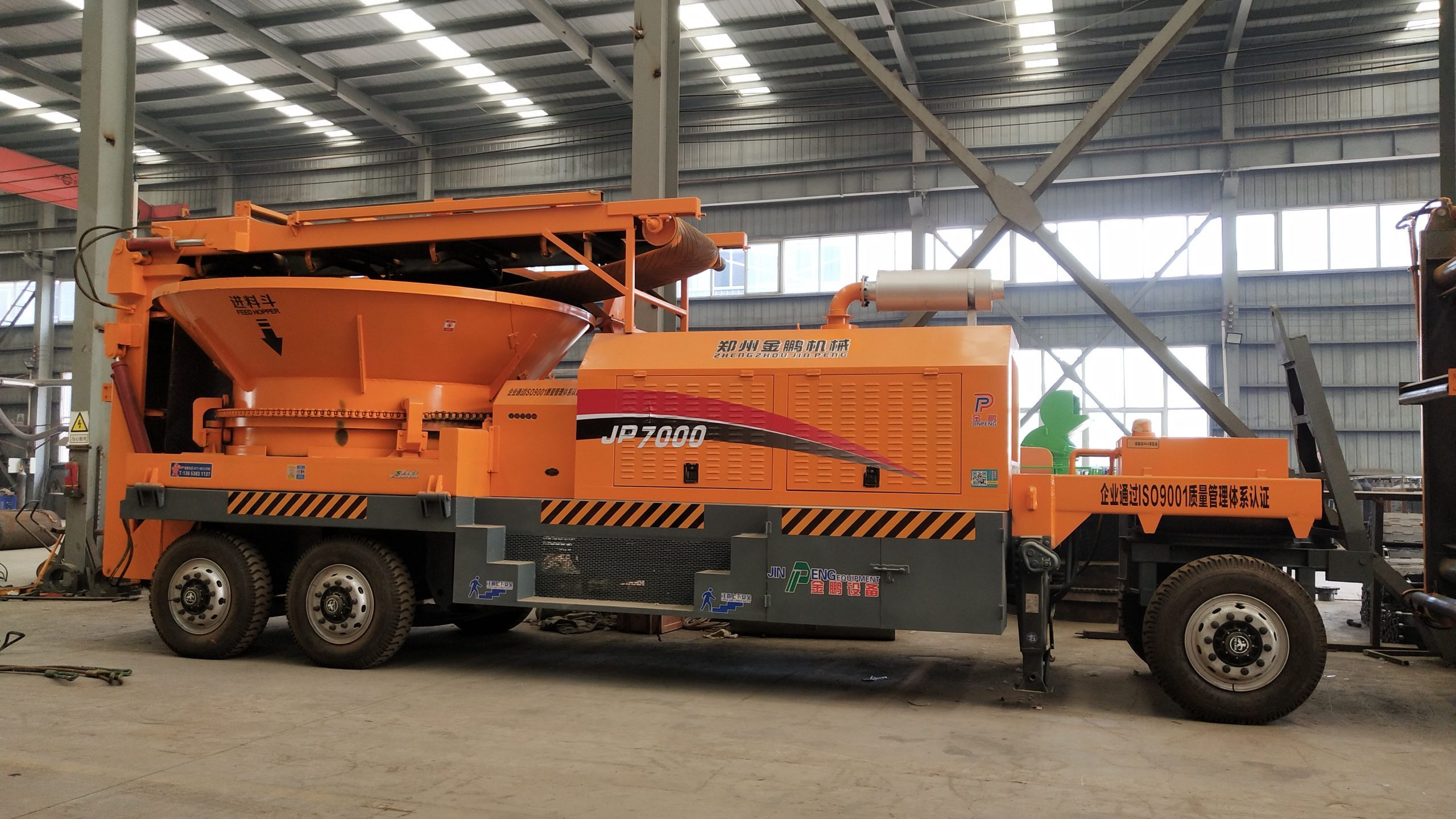

Actually, the wheeled version is designed like a heavy-duty trailer. As a result, it is the go-to solution for operators who prioritize rapid relocation and cost-efficiency.
✅ The Advantages:
- High-Speed Relocation: Can be towed by a standard heavy truck at highway speeds (60-80 km/h). No specialized low-boy trailer is required for transport.
- Lower Initial Investment: Wheeled chassis are significantly more affordable than complex track systems, allowing for a faster payback period.
- Low Maintenance: Tires and axles are easy to service and parts are readily available worldwide.
- Pavement-Friendly: Ideal for working on asphalt or concrete without damaging the surface.
❌ The Limitations:
- Terrain Restrictions: Limited to flat, hard-packed surfaces. Not suitable for soft mud, deep snow, or steep slopes.
- Passive Movement: Requires a towing vehicle to reposition on-site.
2. Tracked Mobile Crushers: The All-Terrain Master
Best for: Remote forest clearing, off-road projects, and challenging environments.
On the other hand, the tracked version is built like a tank. It is an independent, self-propelled unit designed to go where trucks cannot.
✅ The Advantages:
- Zero-Terrain Limit: Effortlessly maneuvers through deep mud, sand, rocky ground, and steep inclines.
- Remote Control Maneuverability: Operators can “walk” the machine into tight spots using a wireless remote, ensuring maximum safety and precision.
- Zero Turning Radius: Can spin in place (360°), making it highly effective in dense forests or cramped job sites.
- Stability: Provides a rock-solid foundation for the crushing process, even on uneven ground.
❌ The Limitations:
- Higher Cost: The advanced hydraulic drive and steel/rubber tracks represent a significant premium in price.
- Transport Logistics: Requires a specialized trailer (Low-boy) for long-distance transport between cities.
Quick Comparison Table
| Feature | Wheeled (Trailer) | Tracked (Crawler) |
|---|---|---|
| Mobility | Highway Towable | Self-Propelled (Remote) |
| Ground Condition | Flat / Hard Ground | All-Terrain / Muddy / Sloped |
| Investment Cost | Competitive | High (Premium) |
| On-site Flexibility | Low (Needs Tow Truck) | High (Independent) |
| Maintenance | Simple & Low Cost | Specialist Required |
💡 Expert Recommendation: How to Choose?
Choose Wheeled If: Your job sites are mostly in urban areas or recycling centers with paved roads, and you need to move the machine between different sites frequently.
Choose Tracked If: You are working in primary forestry or land clearing where the ground is unpredictable, and you need the machine to move deep into the site alongside your felling equipment.
Contact Us for a Custom Quote
If so, please feel free to send us an inquiry today! Furthermore, our technical team will provide a customized ROI analysis for both the Wheeled and Tracked JP Series crushers, thereby ensuring you choose the most profitable solution for your project.
[JP Wood Recycling Crusher] Specialists in Heavy-Duty Wood Processing Solutions

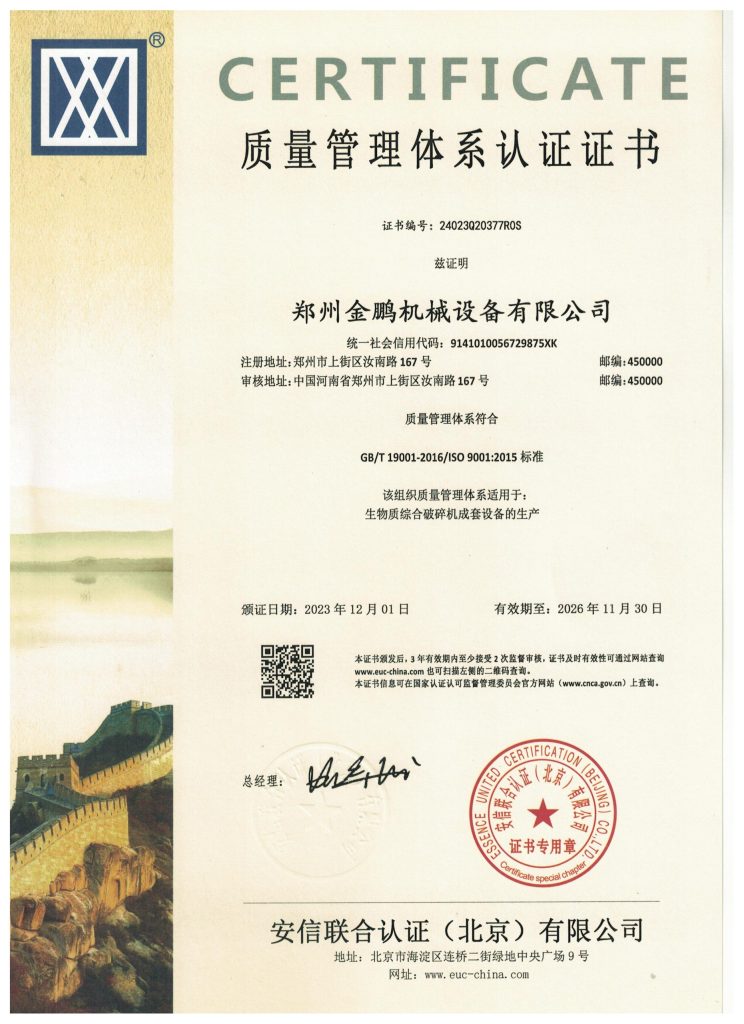

Quality Control System-third party certificates
Reliable Logistics and Global Delivery for Jinpeng Wood Crushers
1.Export Packaging Standard

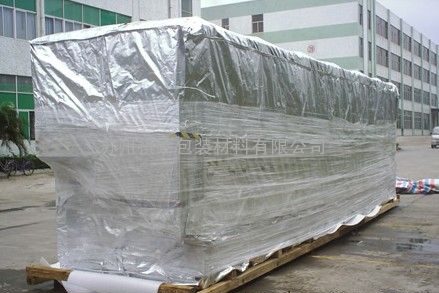

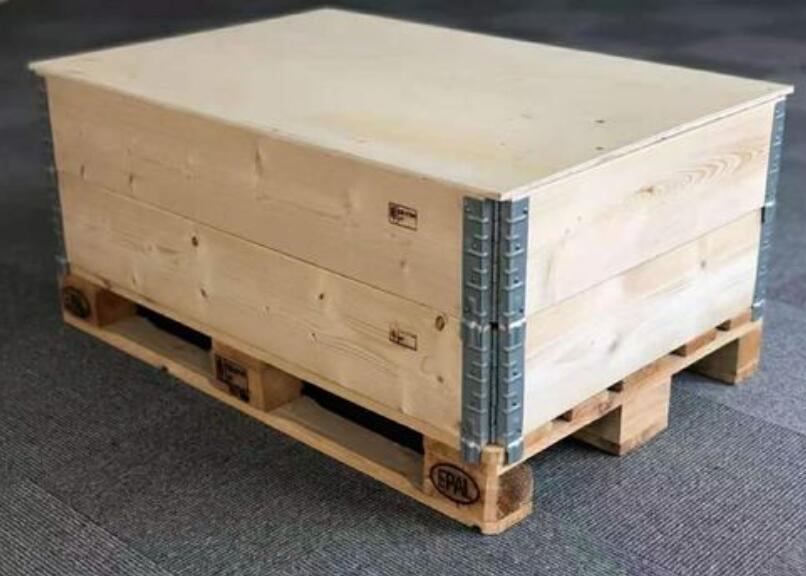

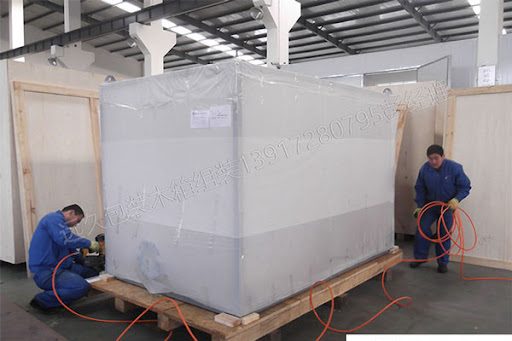

In terms of logistics, we prioritize the safety and efficiency of every delivery. To begin with, all machines, such as the JP7000, undergo a rigorous export packaging process. Specifically, we use reinforced steel frames and anti-rust plastic wrapping to ensure the equipment remains in perfect condition during long-distance sea freight.

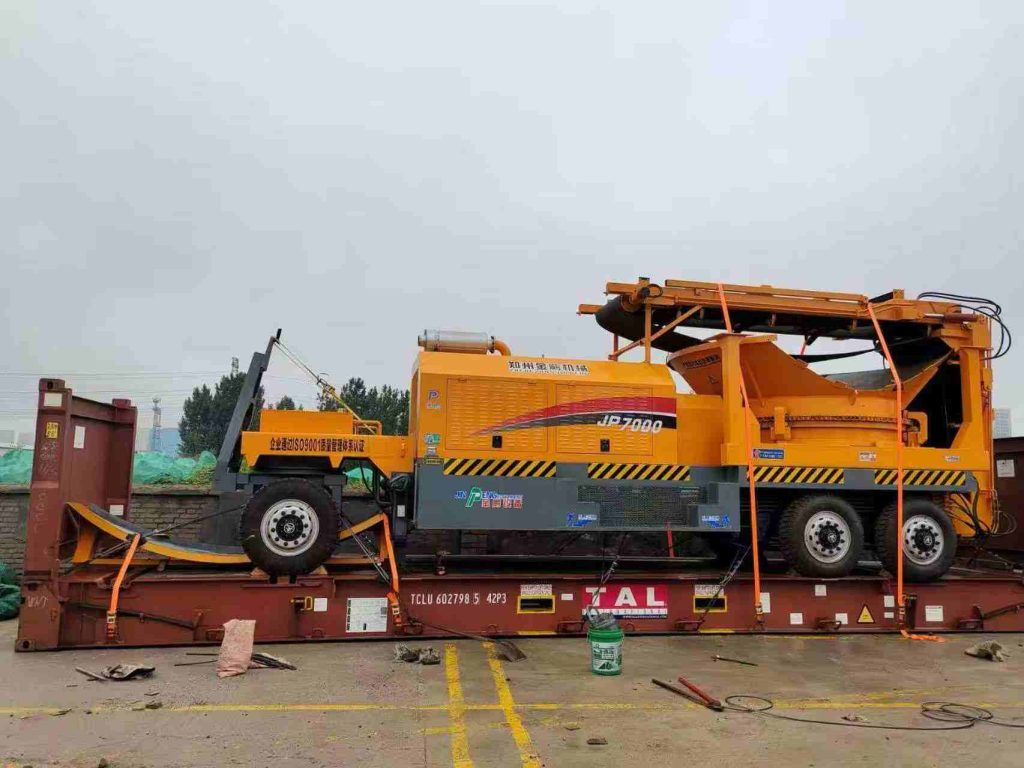

Furthermore, our technical team is highly experienced in container loading. For instance, large-scale horizontal grinders usually require 40HQ or Flat Rack containers. Consequently, we optimize the spatial layout to minimize shipping costs for our clients.

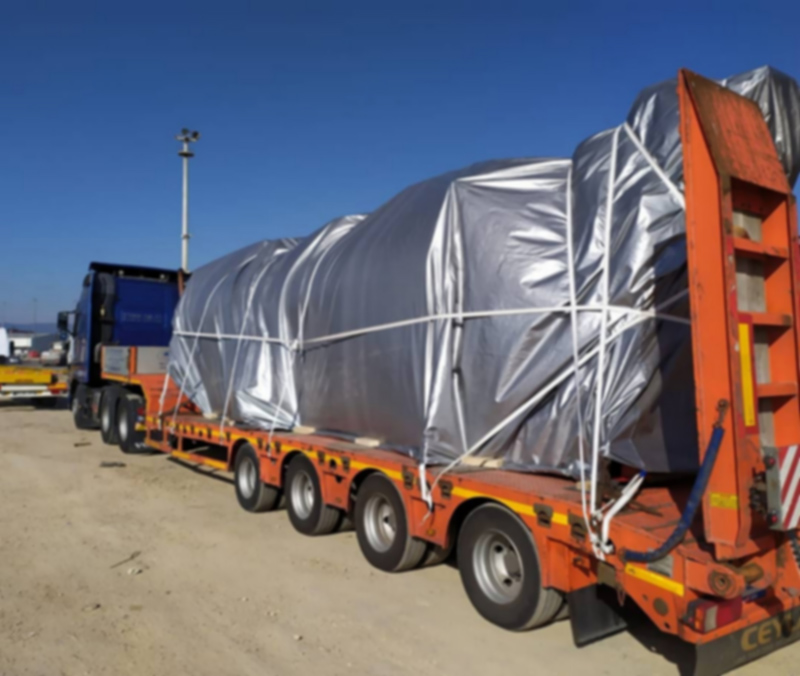

Regarding global reach, we have established stable shipping routes to regions including Russia, Southeast Asia, and Africa. Therefore, whether you are located in a coastal port or an inland forestry site, we can provide a customized land or sea transport solution. Ultimately, our goal is to provide a zero-worry logistics experience, ensuring your production can start as scheduled.
Beyond the JP7000 series, we also provide various other types of horizontal wood crushers, specifically including stationary motor-powered models. Therefore, if you have a fixed processing site and a stable electric power supply, we highly recommend referring to our stationary horizontal crusher as a cost-effective alternative.
For more cases and Working Video of JP7000, kindly contact us or view the cases.
