Product Introduction

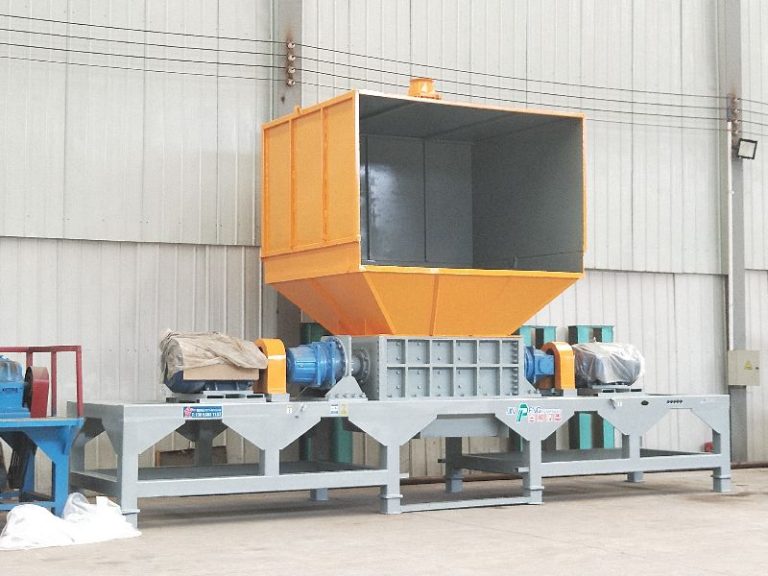

The Bulky Waste Shredder is a low-speed, high-torque rotary shear equipment designed to reduce material volume through shearing, squeezing, and tearing actions. It mainly consists of the shredder main body, frame, collection hopper, and control cabinet. It is widely used in environmental protection fields such as municipal solid waste disposal, bulky waste volume reduction, resource recycling, waste incineration pretreatment, and landfill operations.
Key Features
Crush More
Low speed, high torque = Maximum output.
Quiet Power
High performance without the noise.
Non-Stop Duty
Vibration-free operation for continuous production.
Product Parameters
| Items/Model | JP5518 | JP5515 |
| Motor Power | 75kw+75kw | 160kw+160kw |
| Motor Brand | Siemens Beide | Siemens Beide |
| Gearbox Model | PZC13 | PZC16 |
| Gearbox Brand | Boneng Transmission | Boneng Transmission |
| Qty of Blades | 30 pcs | 30 pcs |
| Blade Type | Integral Blade | Intergral Blade |
| Blade Dimensions | Φ550mm*60mm | φ 570mm*50mm |
| Blade Teeth | 6 | 7 |
| Blade Material | Hapdox600(Sweden) | Hapdox600(Sweden) |
| Main Shaft Speed | 13-15 r/m | 25 r/m |
| Main Shaft Material | 40cr | 42CrMoV |
| Main Shaft Diameter | φ 210mm | φ 240mm |
| Main Shaft Type | Hexagonal | Hexagonal |
| Shredding Chamber Size | 1800mm*1100mm | 1500mm*1100mm |
| Inlet Size | 2500mm*1600mm*1500mm | 2000mm*1600mm*1500mm |
| Basic Machine Dimensions | 6000mm*3000mm*3500mm | 7000mm*1500mm*2800mm |
| Primary Discharge Conveyor | 1200m*4000mm | 1200m*4000mm |
| Secondary Discharge Conveyor | 1200mm*10000mm | 1200mm*12000mm |
| Start-up Method | VFD(variable frequency drive) | VFD |
| Operation Mode | Remote Control(effective range 80m) | Remote Control(effective range 80m) |
| Main Unit Color | Gray(customizable) | Gray(customizable) |
| Applicable Materials | Waste furniture, household appliances, garden waste | Waste furniture, household appliances, garden waste |
| Output Particle Size | 95%≤300mm | 95%≤300mm |
| Feeding Method | Chain Conveyor | Chain Conveyor |
| Capacity | 5-10t/h | 10-20 t/h |
Performance
