Disc Wood Chipper

Product Information

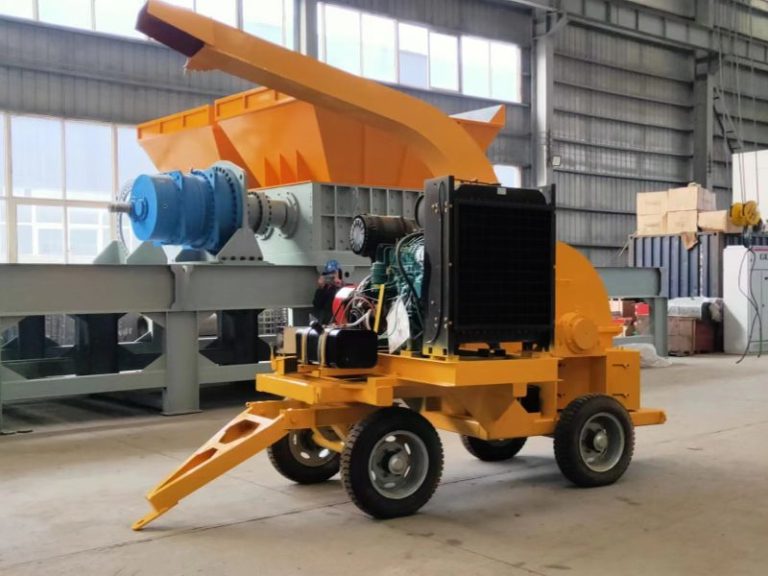

Our Industrial Disc Wood Chipper is the premier choice for paper mills and particle board manufacturers requiring superior chip quality. Specifically engineered for logs, bamboo, and slabs, this disc wood chipper excels at processing slippery and high-toughness materials with ease. From the compact Model 500 (1-2 t/h) to the massive Model 2500 (up to 100 t/h), our disc wood chipper range ensures uniform chip size and minimal waste. Perfectly suited for silicon plants and high-end industrial production, this chipper combines heavy-duty durability with precision cutting to maximize your production ROI.

In response to the market demand observed in recent years for larger wood chips (such as those required by silicon plants), besides disc wood chipper, Zhengzhou Jinpeng Machinery Equipment Co.,Ltd., also has developed and launched a disc chipper specifically designed for processing large wood chips (producing chips with a length of 50–100 mm and a thickness of 10–30 mm). If this output size still not reach your expection, or you need smaller size, kindly take a look at our water drop hammer mill.

Features

Product Parameters

Model	Power(Kw)	Feeding diameter（mm)	Capacity（t/h)	Qty of blades(pcs）	Disc diameter(mm)
JP500	7.5	140*140	1-2	3	500
JP800（mobile)	30	220*220	4-5	4	800
JP950	37	250*250	6-8	4	950
JP1100(mobile)	55	280*280	10-12	6	1100
JP1210	75	380*360	12-15	6	1210
JP1410(mobile)	90	400*460	15-20	4	1410

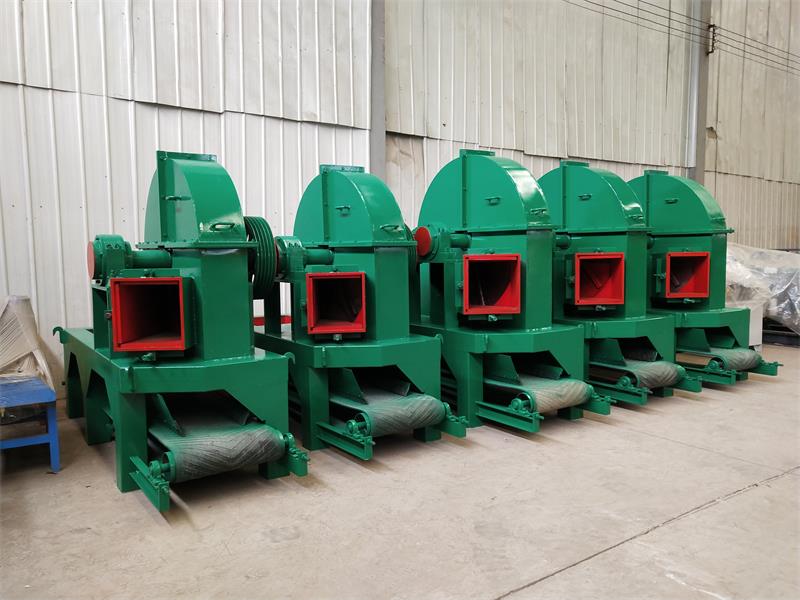

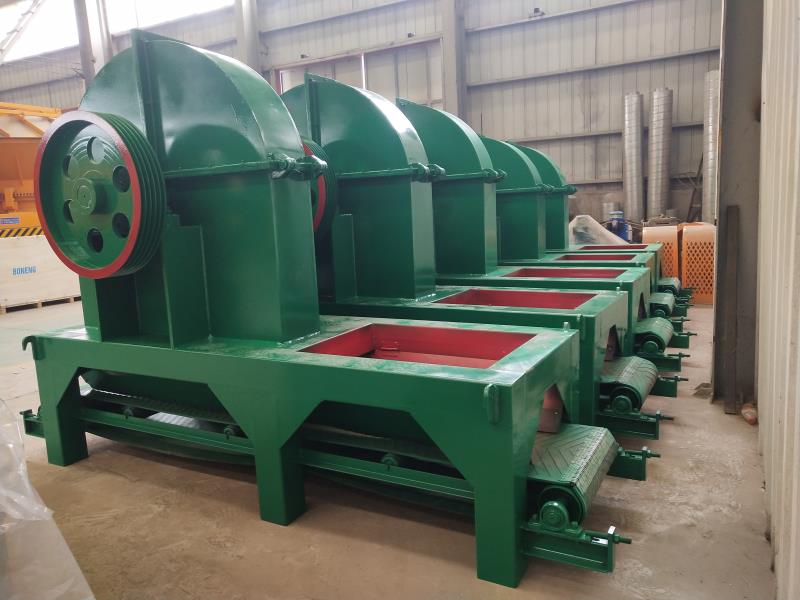

Stationary Disc Chipper

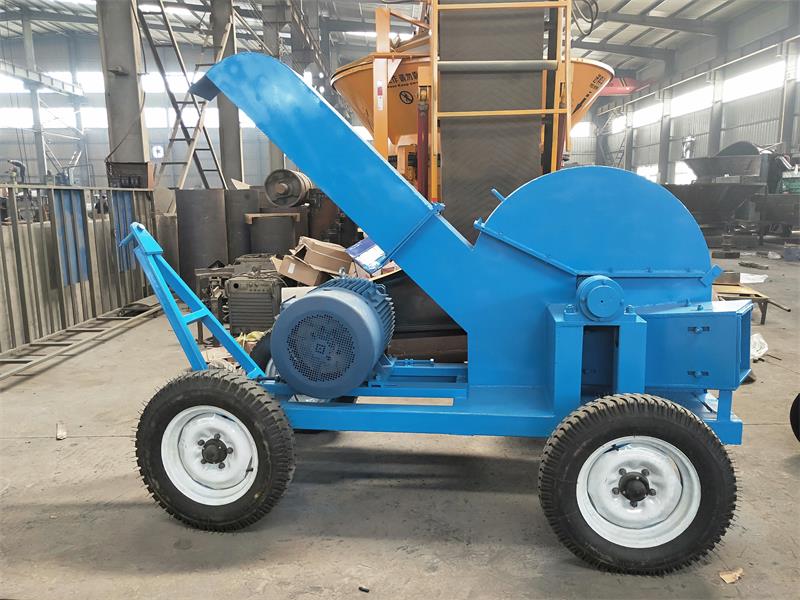

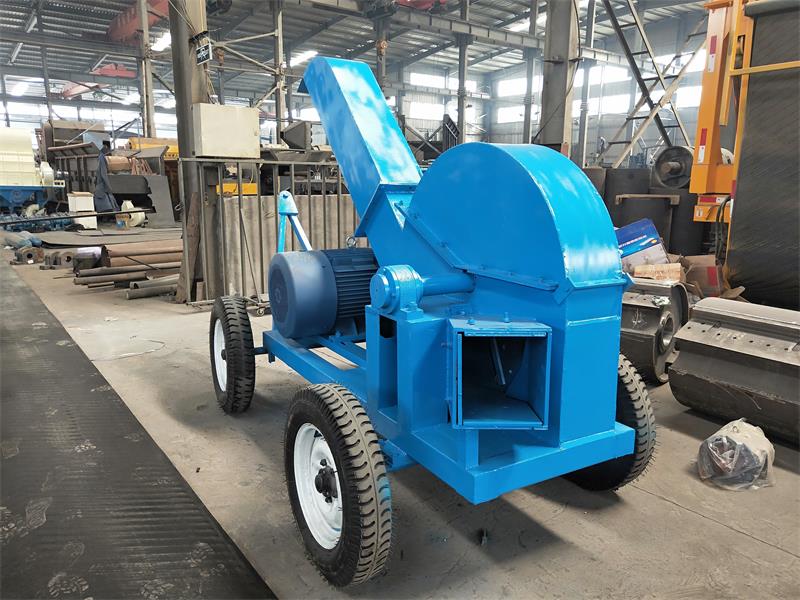

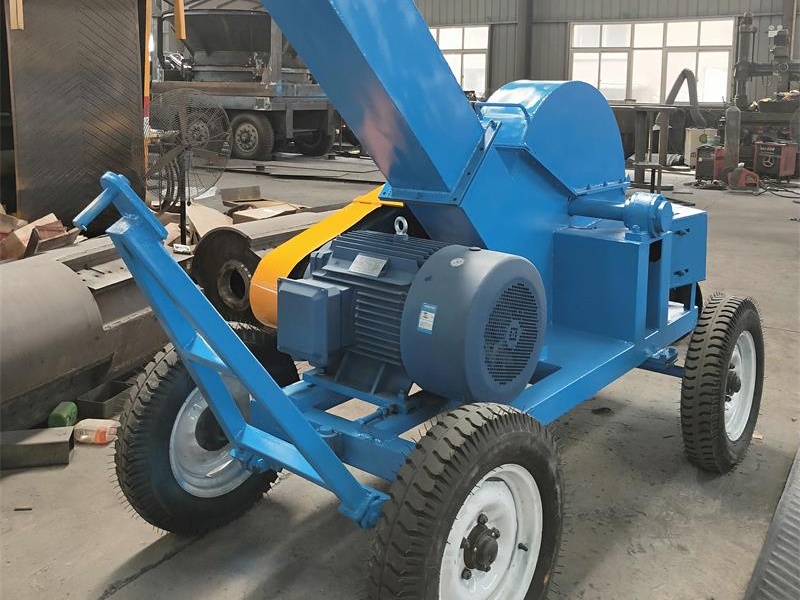

JP1100

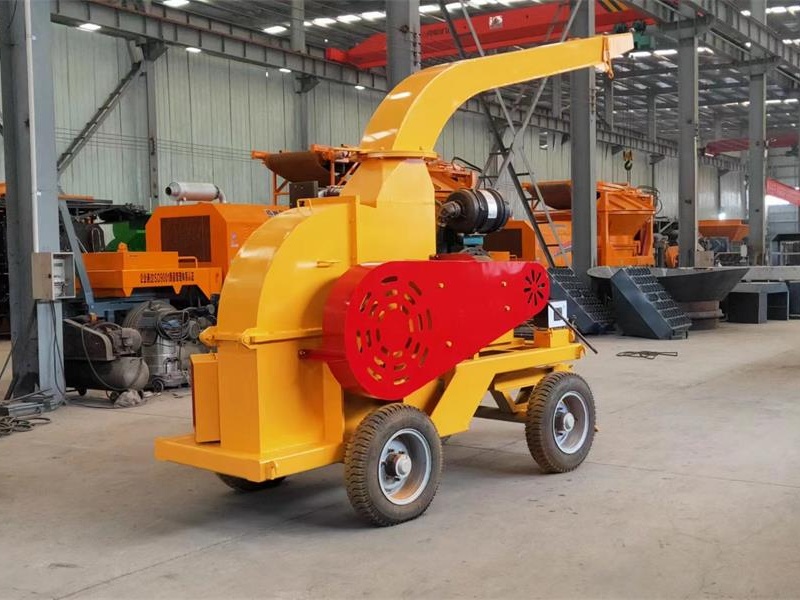

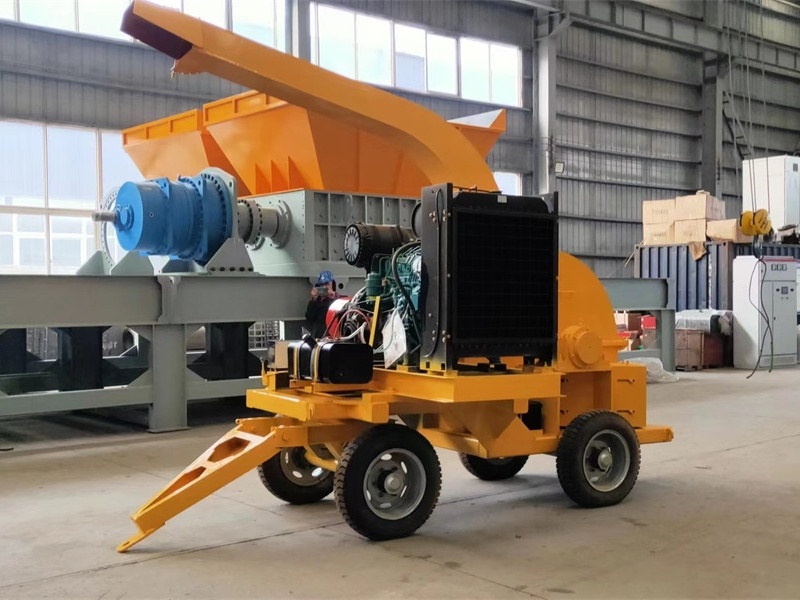

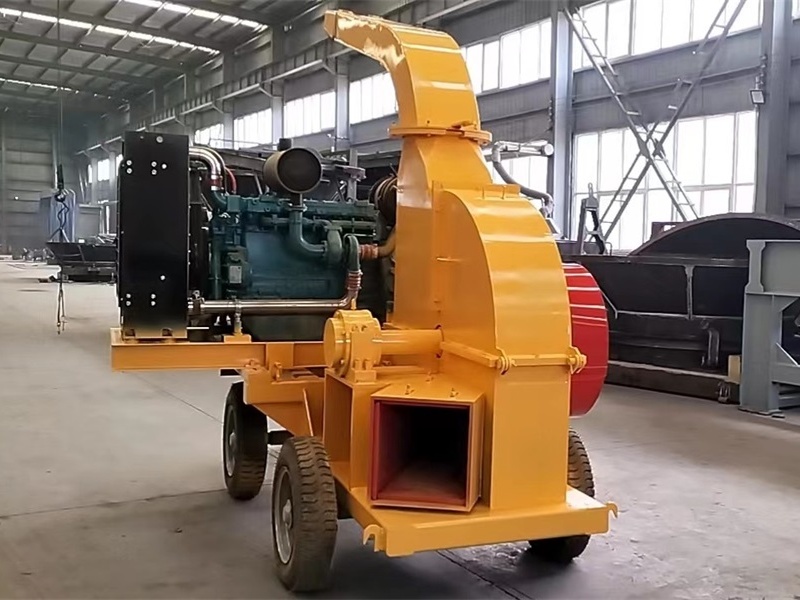

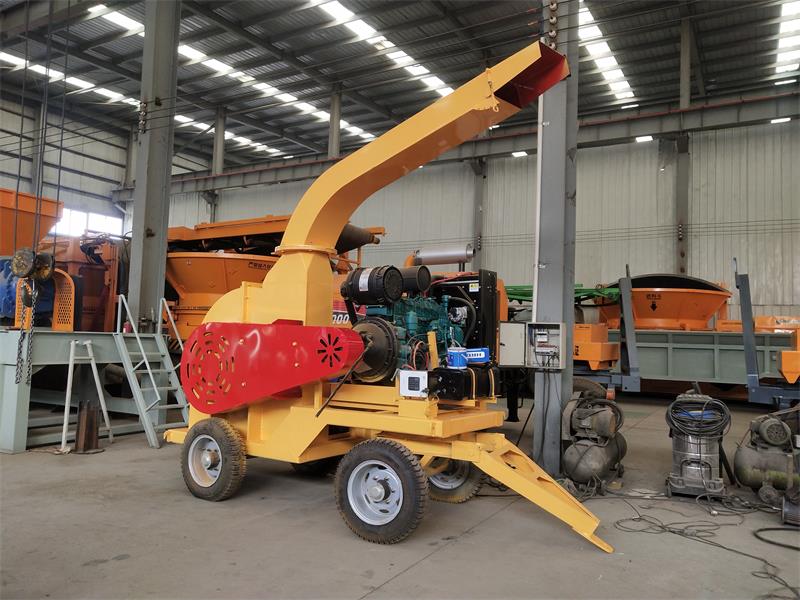

JP1410

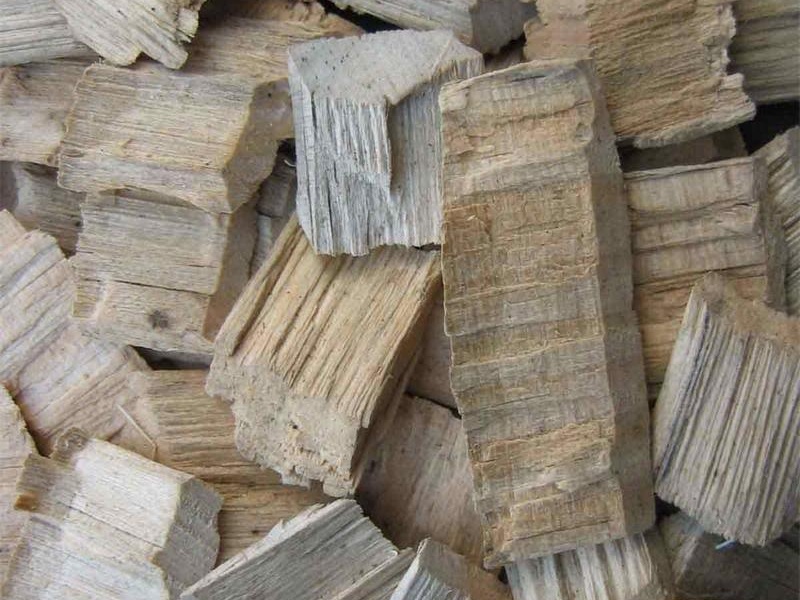

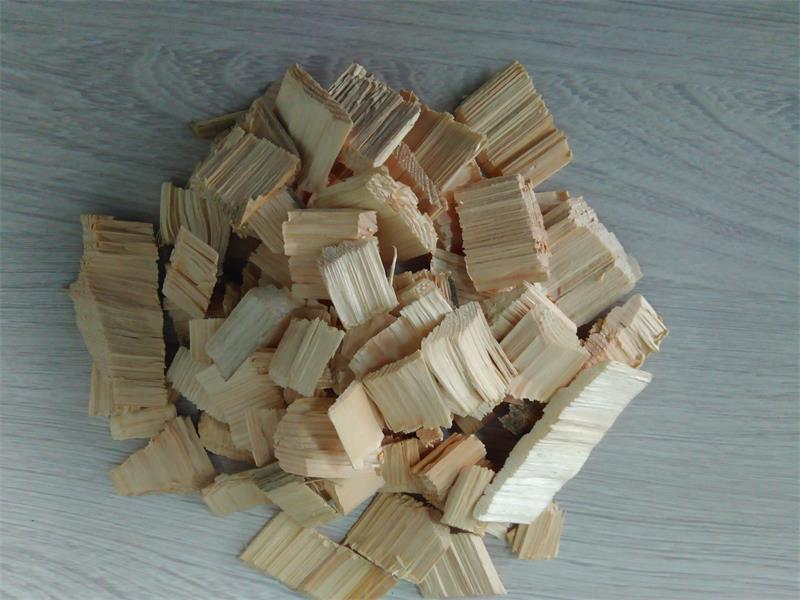

Performance

FAQ

Q1: Is this disc chipper suitable for processing bamboo?

A: Yes, our disc chipper is particularly effective for bamboo. The high-speed cutting disc is designed to handle the tough, slippery surface of bamboo, producing the clean, uniform chips required for bamboo pulp and paper production.

Q2: What is the benefit of a disc chipper over a drum chipper?

A: Disc chippers typically produce higher quality, more uniform chips with a smoother cut surface. This makes them the preferred choice for industries where chip quality directly impacts the final product, such as high-end papermaking and chemical-grade silicon production.

Q3: How do I choose between Model 500 and the larger industrial models?

A: It depends on your required output. Model 500 is ideal for small-scale workshops (1-2 t/h), while our Model 2500 is a powerhouse for large-scale factories requiring up to 100 tons per hour. Consult our sales engineers to match the power (7.5kW to 550kW) to your specific log diameters.

Q4: Could you do customized type? Yes.

Disc Wood Chipper vs. Drum Wood Chipper: Which One Should You Choose?

In the wood processing industry, choosing the right chipper depends on two main factors: What is the final use of your chips? and What kind of raw material are you processing?

1. Comparison at a Glance

Feature	Disc Wood Chipper	Drum Wood Chipper
Working Principle	Uses a high-speed rotating disc with knives for precise slicing.	Uses a heavy-duty rotating drum with knives for crushing/cutting.
Chip Quality	Superior (Uniform size, flat, smooth surface).	Standard (Varying thickness, includes some fines).
Best Raw Material	Clean logs, bamboo, straight slabs.	Irregular material, branches, wood waste, pallets.
Main Application	Paper pulp, MDF, Particleboard, Silicon plants.	Biomass energy, Power plants, Pellets, Mulch.
Feeding Capacity	Limited by log diameter & shape.	High (Can swallow bulky and irregular waste).

2. When to Choose a Disc Wood Chipper?

Focus: High Quality & Precision Processing

You should recommend a Disc Chipper if your client prioritizes Chip Quality over volume/versatility.

• Final Product Requirement: If the chips are for Paper Mills (Pulp) or High-end Board Production (MDF/HDF). These industries require precise chip length and thickness to ensure uniform chemical penetration during processing.
• Premium Raw Material: The client has access to high-quality clean logs (debarked), bamboo, or uniform slabs.
• Typical Client Scenario: “I need the highest quality fiber for my paper pulp factory.”

3. When to Choose a Drum Wood Chipper?

Focus: Versatility & Industrial Throughput

You should recommend a Drum Chipper (like our BX Series) if the client prioritizes Efficiency and Raw Material Flexibility.

• Final Product Requirement: If the chips are for Biomass Energy, industrial boilers, or as a pre-step for Pellet Production. These industries do not require perfect chip geometry—they just need volume and combustible material.
• Difficult Raw Material: The client is processing “ugly” wood—crooked branches, sawmill waste, demolition wood, or even logs with different diameters mixed together. The larger, wider inlet of a drum chipper handles these easily.
• Typical Client Scenario: “I want to process large volumes of forestry waste and branches into fuel as fast as possible.”

4. Sales Script: 2 Questions to Ask Your Client

To give the most professional recommendation, ask your lead these two questions:

1. “What is the final application of your wood chips?”
   • If they say Paper/Pulp/MDF $\to$→ Recommend Disc Chipper.
   • If they say Power Plant/Fuel/Pellets $\to$→ Recommend Drum Chipper.
2. “What is the condition and maximum diameter of your raw material?”
   • If it’s Straight Logs/Bamboo $\to$→ Recommend Disc Chipper.
   • If it’s Branches/Irregular Waste $\to$→ Recommend Drum Chipper.

Experts say: “If you are aiming for the premium paper-grade market, our Disc Wood Chipper is the gold standard because it produces chips with a precise slicing angle that preserves fiber length. However, if your goal is maximum productivity with a variety of forest waste, our BX Series Drum Chipper offers far better durability and can handle almost anything you throw at it.”
