Product Introduction

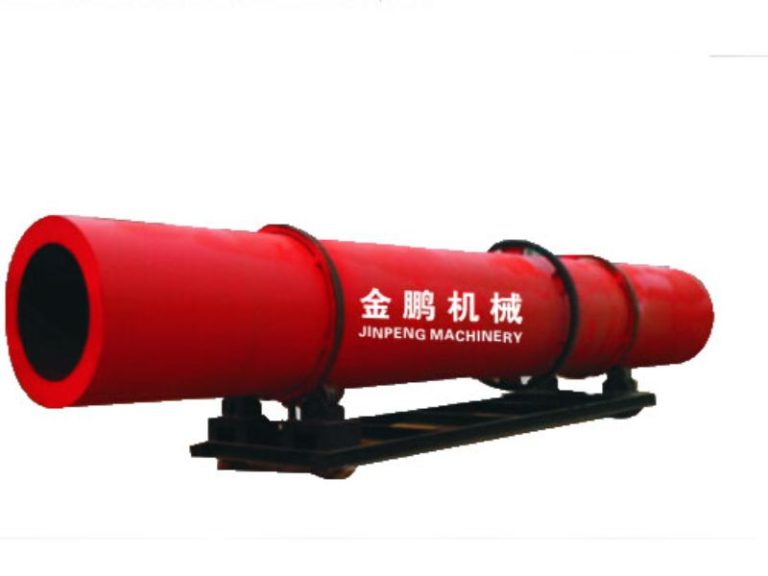

A high-efficiency drying system specifically engineered for biomass materials like sawdust, wood chips, and veneers. It utilizes a high-temperature rapid drying process paired with a biomass hot air furnace, ensuring high output, low operational costs, and enhanced safety through integrated fire prevention and waste heat recovery systems.
Working Principle
Utilizing a multi-layer sleeve structure and a combined lifting device, material is fully dispersed in the hot airflow. This fluidization effect maximizes heat exchange, eliminates “wind tunnel” phenomena, and significantly boosts thermal efficiency and drying uniformity.
Key Features
Multi-layer structure + advanced lifting system maximize heat exchange, delivering high capacity and fast drying speed.
Self-insulated cylinder design improves efficiency by over 50% vs traditional dryers, reducing energy consumption.
Frequency conversion + automated system ensure stable operation and consistent final moisture content.
Smooth transmission prevents roller slippage and reduces downtime, while requiring only 1/6 of imported equipment investment.
Small footprint, robust structure, low exhaust temperature protects dust collectors and supports long-term continuous production.
Product Parameters
| Model(mm) | Inlet Air Temp（℃） | Power（Kw) | Capacity（t/h) | Weight（t) |
| Φ600×6000 | ≤700 | 3 | 0.5-1.5 | 2.9 |
| Φ800×8000 | ≤700 | 4 | 0.8-2.0 | 3.5 |
| Φ800×10000 | ≤700 | 4 | 0.8-2.5 | 4.5 |
| Φ1000×10000 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
| Φ1200×10000 | ≤700 | 7.5 | 1.8-5 | 14.5 |
| Φ1200×12000 | ≤700 | 11 | 2-6 | 14.8 |
| Φ1500×12000 | ≤800 | 15 | 3.5-9 | 17.8 |
| Φ1800×12000 | ≤800 | 18.5 | 5-12 | 25 |
| Φ2200×12000 | ≤800 | 18.5 | 6-15 | 33 |
| Φ2200×18000 | ≤800 | 22 | 10-18 | 53.8 |
| Φ2200×20000 | ≤800 | 30 | 12-20 | 56 |
| Φ2400×20000 | ≤800 | 37 | 18-30 | 60 |
| Φ3000×20000 | ≤800 | 55 | 25-35 | 78 |
| Φ3000×25000 | ≤800 | 75 | 32-40 | 104.9 |
