Product Introduction

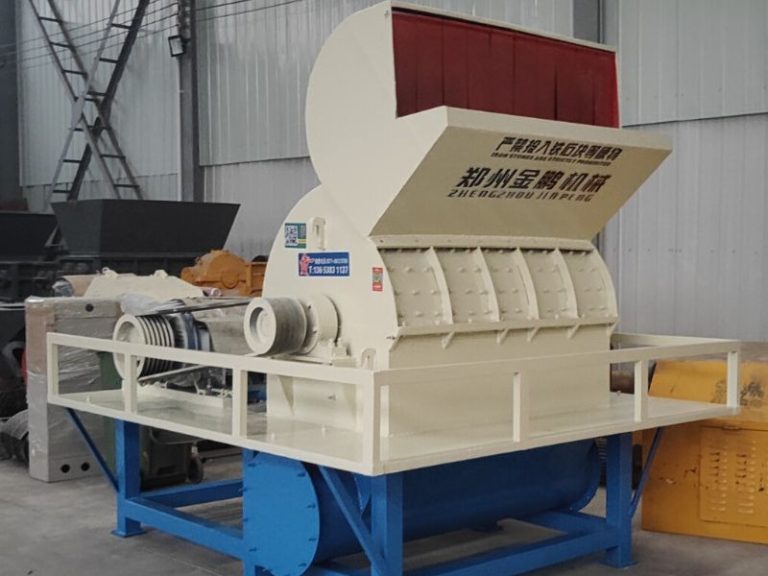

Built for tough biomass reduction. This heavy-duty crusher processes branches and logs (1–20 cm diameter) and works equally well with fibrous feedstocks such as bamboo and crop stalks. A multi-stage crushing chamber delivers fast throughput and consistent particle size—ideal for biomass recycling and pre-processing lines.
Key Features
High Efficiency, Energy Saving and Economy
Powered by a single motor, the unit features a compact, straightforward design that reduces energy use and maintenance needs. It delivers stable operation, low noise, and strong output—an economical choice for long-term production.
Excellent Crushing Performance (5-6t/h)
Multi-stage crushing combines blade cutting with high-speed airflow impact to improve reduction efficiency and maintain consistent output, achieving 5–6 t/h depending on material conditions.
Product Parameters
| Model | JP1500 |
| Rotor Diameter: | 800mm |
| Qty of Hammer: | 108pcs |
| Hammer Dimensions: | 230mm*60mm*8mm |
| Hammer Material: | M65 |
| Main Motor Speed: | 2000 r/m |
| Main Motor Power: | 75kw+75kw |
| Fan Power | 3kw |
| Discharge Auger Power | 3kw |
| Dust Collector Model | 1000 ( 36bags) |
| Basic Machine Dimensions: | 2500*2500*2800 |
| Capacity: | 5000-6000 kg/h |
| Feeding Conveyor Size: | 600*8000mm |
| Feeding Conveyor Power: | 3kw |
| Start Method: | Full-function control cabinet |
| Machine Color: | Multiple color for customization |
