Product Introduction

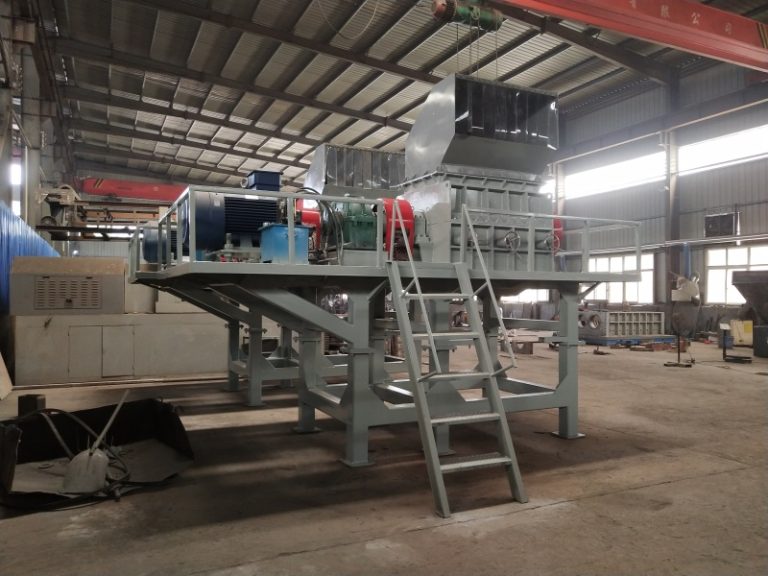

Designed for processing solid waste such as scrap rubber and plastics, this machine reduces bulky materials into 40–100 mesh powder (approx. 0.4–1.2 mm). Widely used for waste tires, plastics, paint buckets, woven bags, and agricultural film to achieve effective size reduction and volume reduction.
Key Features
Low Energy Consumption
Total machine power is only 18.5 kW, delivering low operating cost.
Eco-Friendly Design
Room-temperature grinding helps prevent material oxidation; air conveying system reduces dust pollution.
Smart Upgrade Options
Some models feature a dual-shaft design for higher shearing efficiency and support intelligent control systems.
Performance Specs
- Capacity: 200–1200 kg/h
- Feed Size: 2–20 mesh (approx. 3–15 mm)
- Final Fineness: 40–100 mesh (approx. 0.4–1.2 mm)
Product Parameters
| Item | Model | Qty. | Remark |
| Rubber Crusher | JP-5512 | 1 set | Heavy-duty square tube steel structure (Q235) |
| Main Shaft | Ø220mm | 2 pcs | 42crMov forged shaft(Hexagonal structure, spline connection) |
| Rotary Crusher Blades | Ø550mm×30mm | 40 pcs | Hapdox600+PVC coating |
| Sleeves | 30mm | 40 pcs | 42crMov |
| Static Blades | special design | 2 sets | NM400 |
| Crusher Bearings | Bearing352044 | 4 sets | Wafangdian brand |
| Planetary Reducer | PZC-14 | 2 units | Boneng brand |
| Electric Motor | 55KW | 2 units | Zhengzhou Chuangying brand |
| Motor Coupling | LX14 | 2 sets |
